Precio habitual
$871.72 USD
Precio habitual
Precio de oferta
$871.72 USD
Precio unitario
/
por
Impuestos incluidos.
Los
gastos de envío se calculan en la pantalla de pago.
Bajas existencias: quedan 1

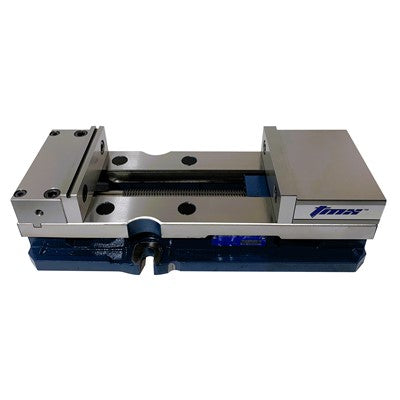

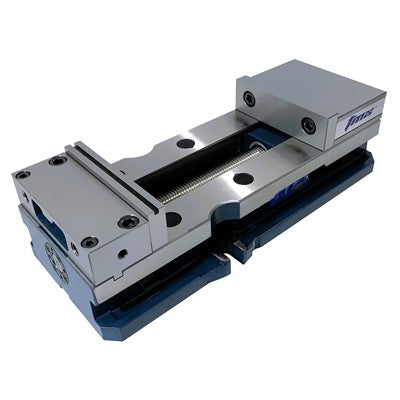

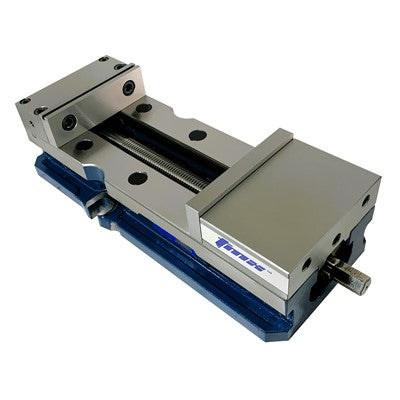

Prensa de precisión TMX apertura de 9.13", ancho de 6". Comparable con modelo DX6 de Kurt
| Weight |
lb |
68 |
| Body |
|
Ductile Iron |
| Jaws |
|
Hardened Steel |
| Torque, Paralellism, Flatness, Perpendicularity |
ft.lbs. |

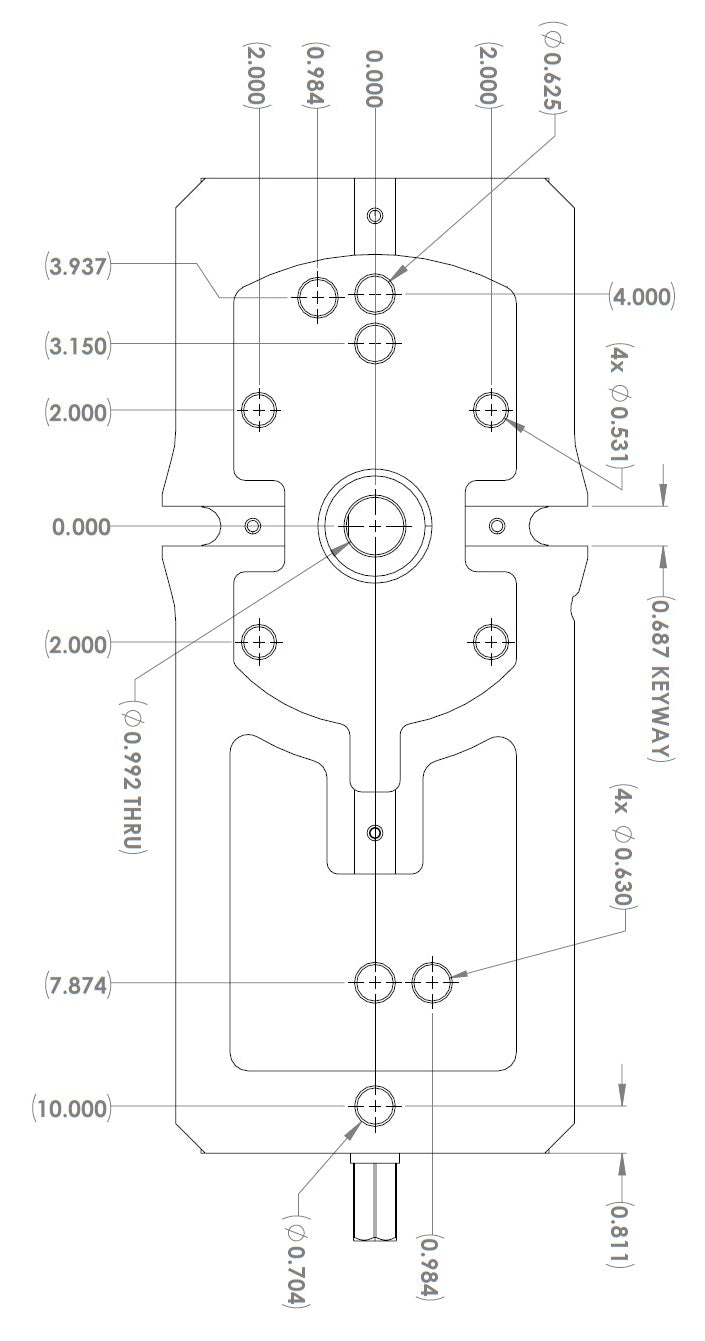

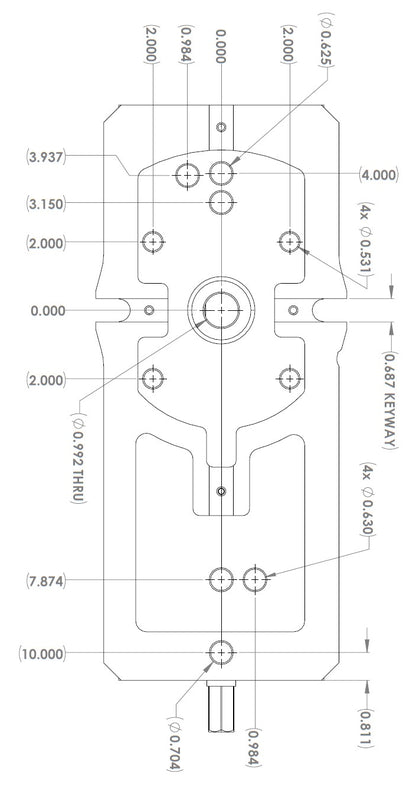

drawing available |
| Repeatability |
|
T+/-0.01mm. |
| Overall Length A |
in |
18.323 |
| Body Length B |
in |
16.810 |
| Bed Height C (+/- 0.0005") |
in |
2.8750 |
| D |
in |
1.485 |
| E |
in |
1.752 |
| F |
in |
2.312 |
| Jaw Opening G |
in |
9.130 |
| H |
in |
0.709 |
| J |
in |
4.000 |
| Jaw Width K |
in |
5.945 |
| L |
in |
3.874 |
| M |
in |
0.937 |
| Body Width N |
in |
7.334 |
| P |
in |
0.6874 |
| Q |
in |
5.972 |
